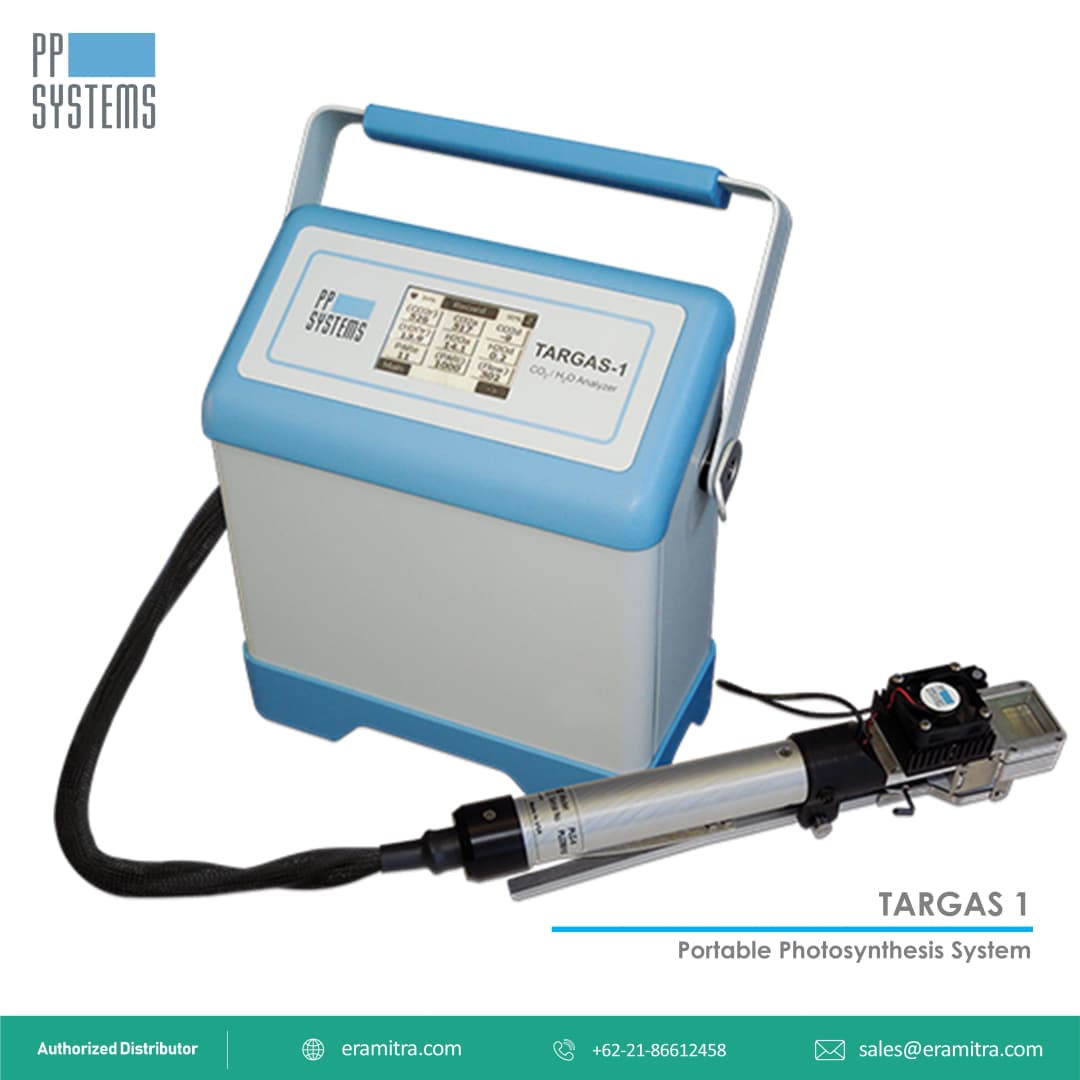

TARGAS-1 Portable Photosynthesis System

CO2 & H2O Gas Analysis

The TARGAS-1 console is compact, lightweight (2.1 kg) and is packaged in a rugged, aluminum enclosure with a shock absorbing polyurethane base making it extremely robust and reliable under harsh environmental conditions. It incorporates two non-dispersive infrared gas analyzers for CO2 and H2O ensuring accurate measurement and control of both CO2 and H2O. An internal air supply unit provides accurately controlled reference air to the leaf cuvette and another pump draws the sample (analysis) air to the gas analyzer. Both pumps are user controlled and accuracy is ensured by two internal electronic flow sensors.

• Lightweight console (2.1 kg) and leaf cuvette (0.7 kg)
• High precision, compact, non-dispersive infrared gas analyzers for both CO2 and H2O
• Automatic temperature and pressure compensation
• Control of CO2 and H2O
• Control of light (light unit optional)
• Powerful, internal rechargeable battery providing up to 10 hours continuous use
• Large touch display with excellent sunlight readability and optimized viewing angle
• Numerical and graphical presentation of data
• Built-in air supply unit and sampling pump with electronic flow sensors
• Wide range of accessories and sensors available
