High temperature DSC (HDSC) up to 1750°C

Description

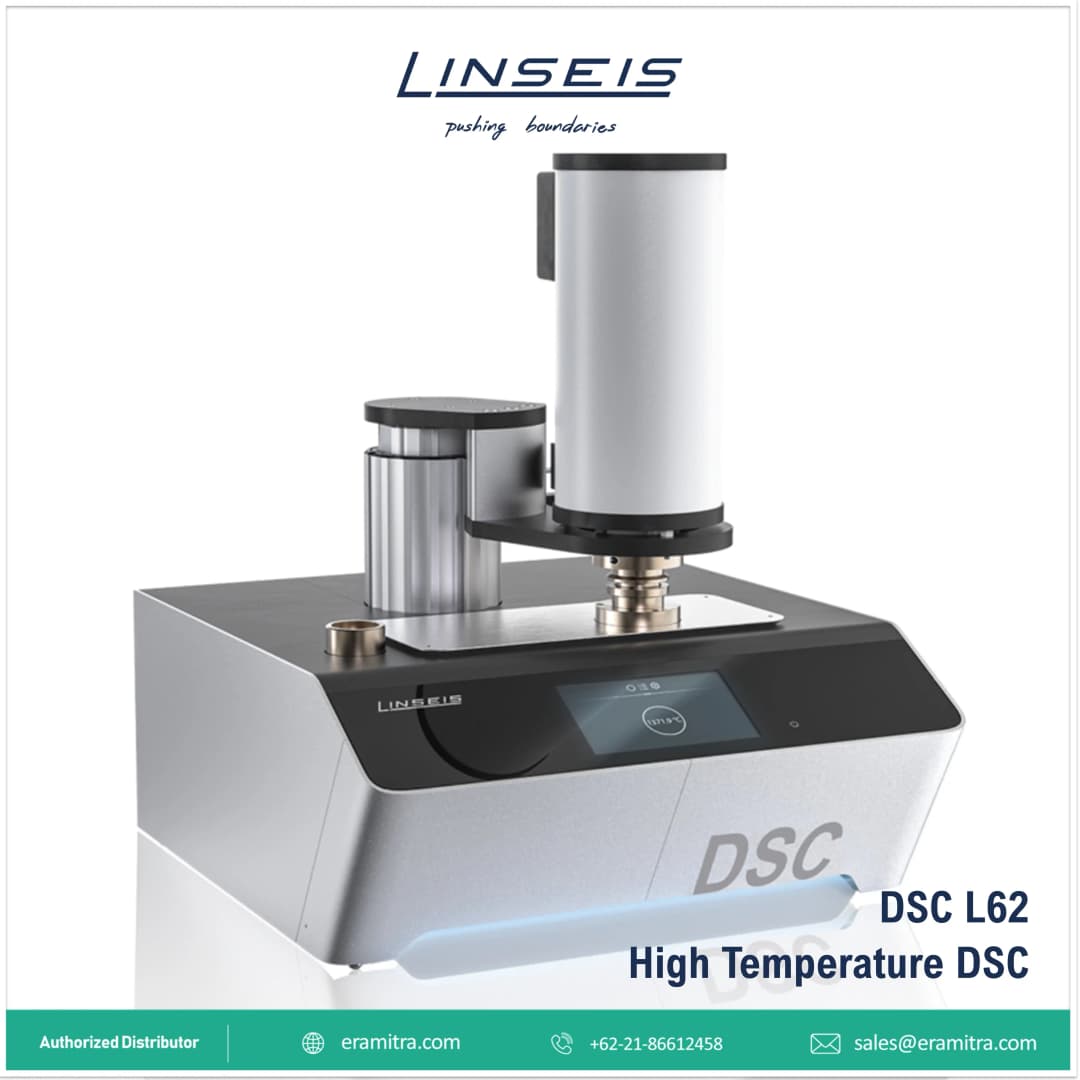

The LINSEIS DSC L62 high-temperature differential scanning calorimeter is characterized by sensors with high calorimetric sensitivity, a short time constant and a condensation-free sample chamber. These features ensure high detection sensitivity and stable baselines over the entire life cycle of the device. This creates ideal conditions for successful use in material development, research, teaching and quality control.

The modular concept of the DSC L62 allows it to be equipped with different oven types for an extremely wide temperature range from -150 °C to 1750 °C.

Various measuring sensors for DSC and DTA as well as different crucible types are available. The vacuum-tight design of the system allows quantitative enthalpy and Cp determinations to be carried out in high-purity gas atmospheres and under vacuum (10-5 mbar). The device can also be equipped with an optional sample robot and a coupling to an MS or FTIR.

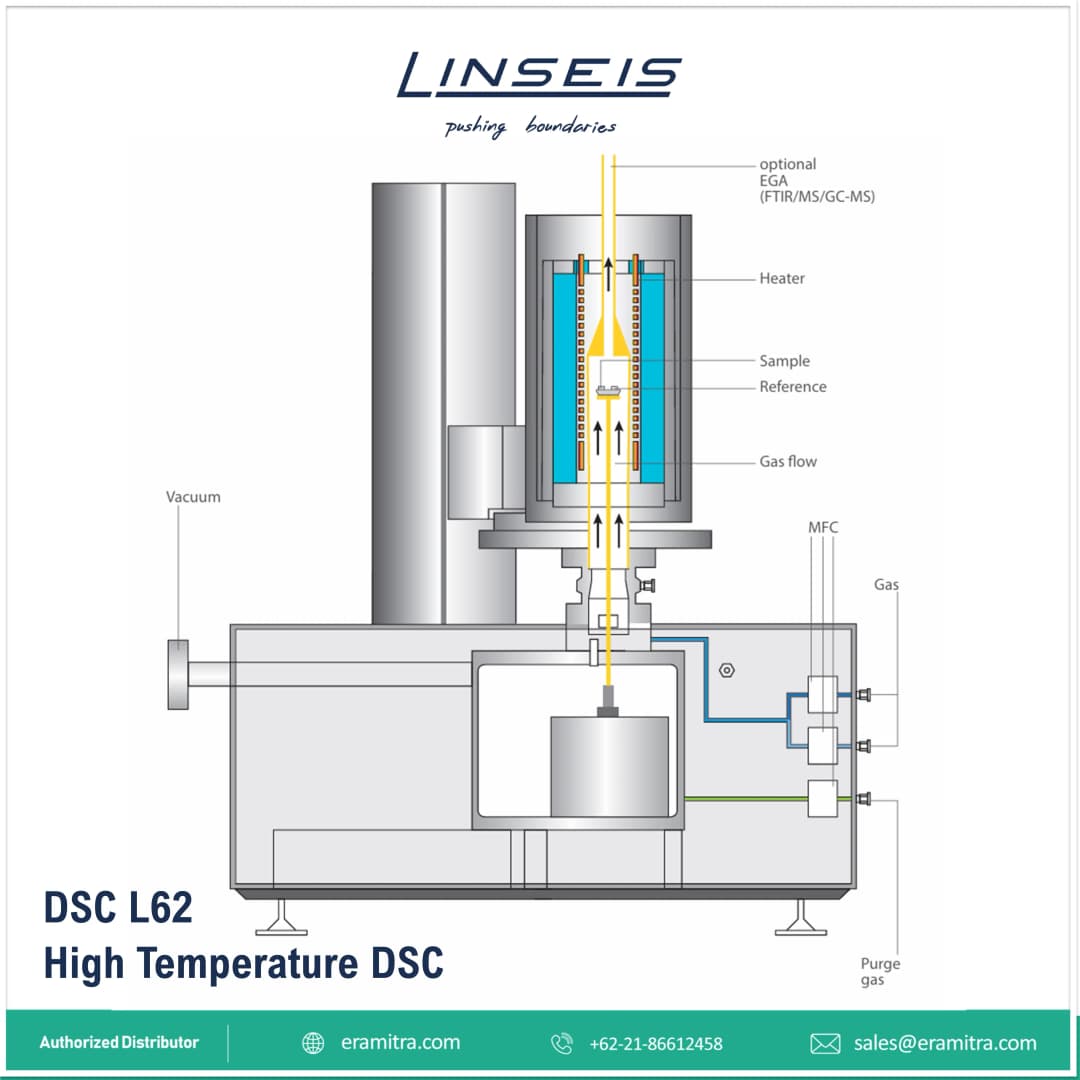

Measuring system of the HDSC:

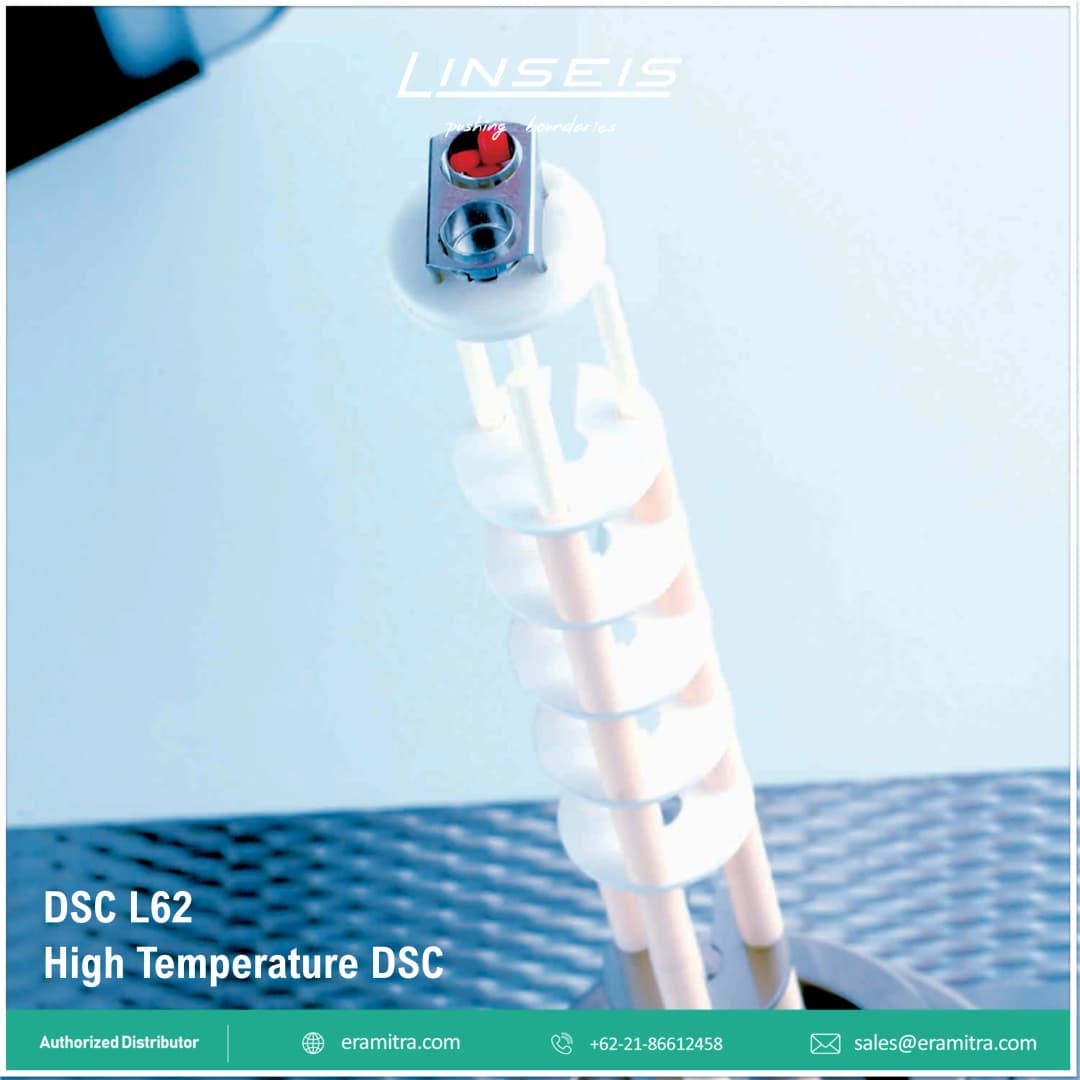

Two different DSC sensors and a DTA sensor are available for this system, which can be easily exchanged by the user. There is also a wide range of different crucibles to choose from, depending on the application. Each DSC sensor is available as type E, K, S or B for the DSC L62. This flexibility means that our DSC is equipped for any application, temperature or atmosphere and is always the perfect choice.
