Description

Linseis offers a wide range of measuring devices for gravimetric sorption analysis.
Our integrated solutions offer the possibility of independent control of pressure, temperature and gas dosing by means of supplied software.

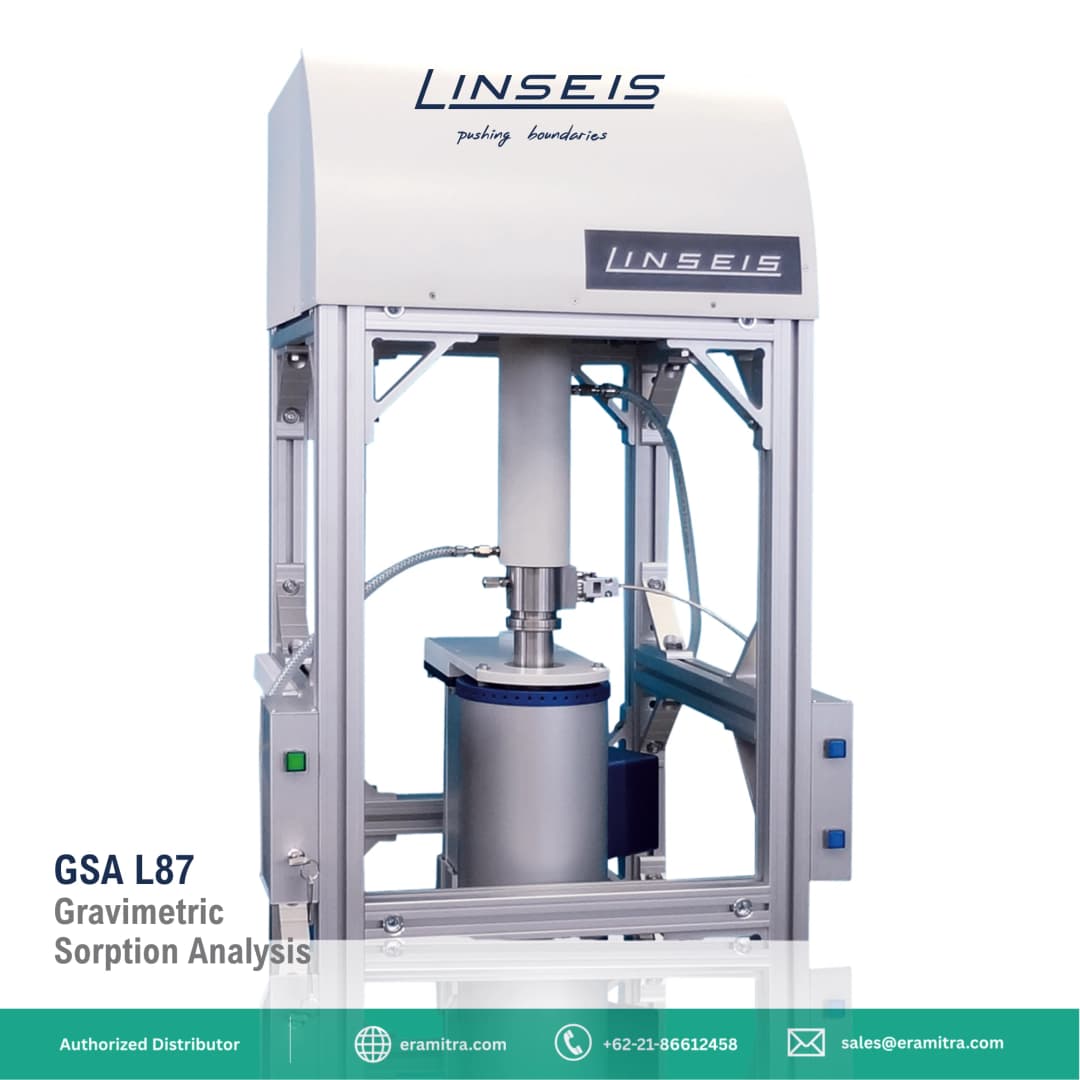

The heart of the Linseis GSA L87 series is our unique magnetic suspension balance, which is characterized by a reaction chamber for very aggressive gases, as the weighing chamber is decoupled in this variant.
A large selection of reactors is available in a temperature range from
-170 °C to 1800 °C and a pressure range from ultra-high vacuum to 300 bar.

The system can optionally be equipped with a gas and/or steam control.
A special water vapor generator for infinitely variable humidity control between 0-100 % is also available.
If desired, the system can also be equipped with gas analyzers for EGA (Evolved Gas Analysis).

With the Linseis GSA L87, sorption processes, diffusion processes, surface tensions and sample densities can be easily measured.
It is also suitable for investigating chemical reactions and production processes such as corrosion, decomposition and combustion, which can be perfectly simulated in the system.
