Advanced Catalyst Evaluation

• Real time results with the highest accuracy and reproducibility
• Automated execution of multiple programmed experiments including complete data acquisition
• Flexible configuration to address key reactions: Fischer-Tropsch, ammonia synthesis/decomposition, methanol synthesis, steam/dry reforming, Sabatier process, hydrogenation, and more.

Overview

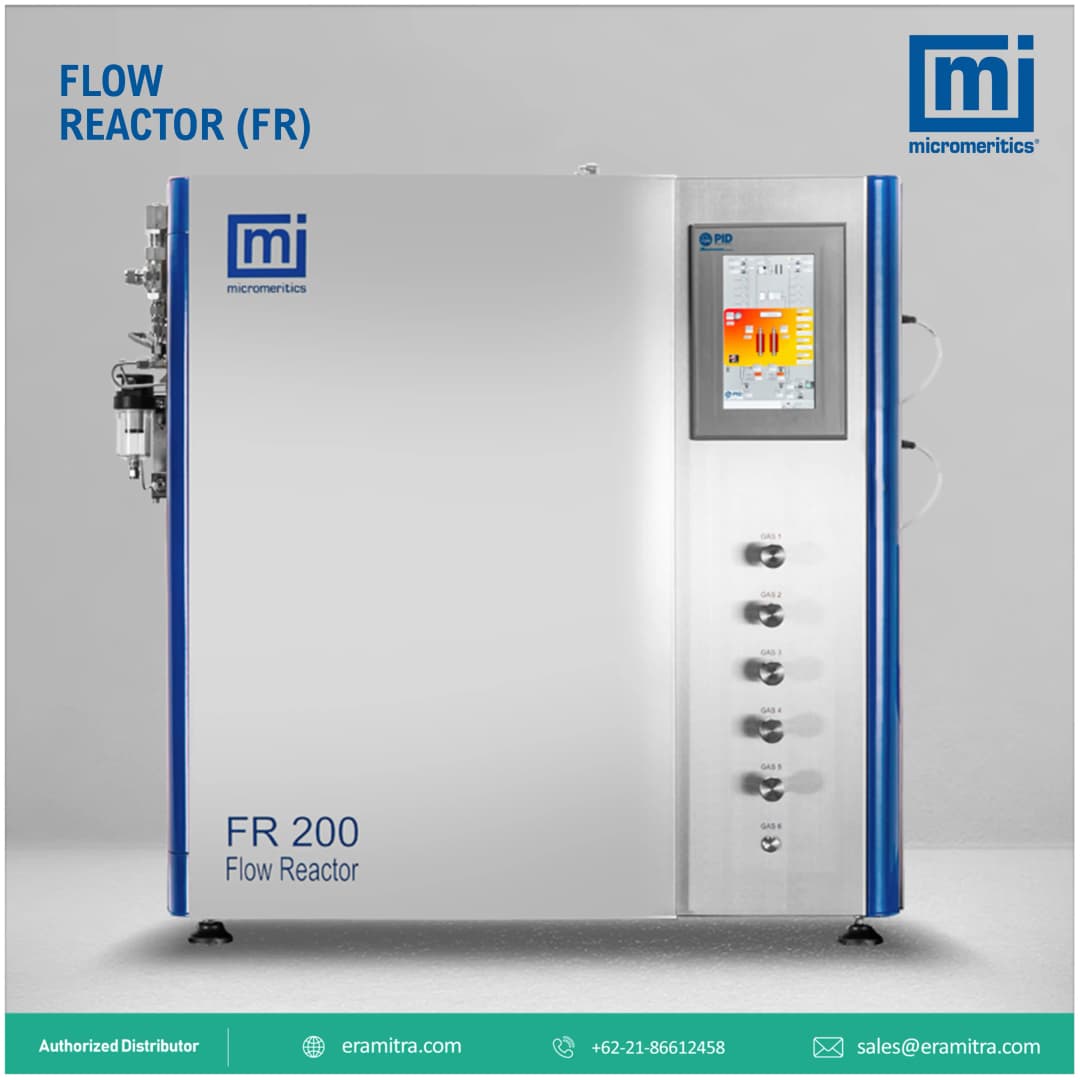

The FR system from Micromeritics is a bench-top turn-key flow reactor that provides:

• A full range of process conditions
• Reaction conditions up to 1000 °C and 200 bar including patented wide-range control valves with stable control resolution to 0.1 bar
• Up to 6 gas and 2 liquid feed streams
• Continuously measured gas or liquid output streams with ultra-low dead volume including patented liquid/gas or liquid/liquid gas separators

A system that is quick to deploy and simple to use

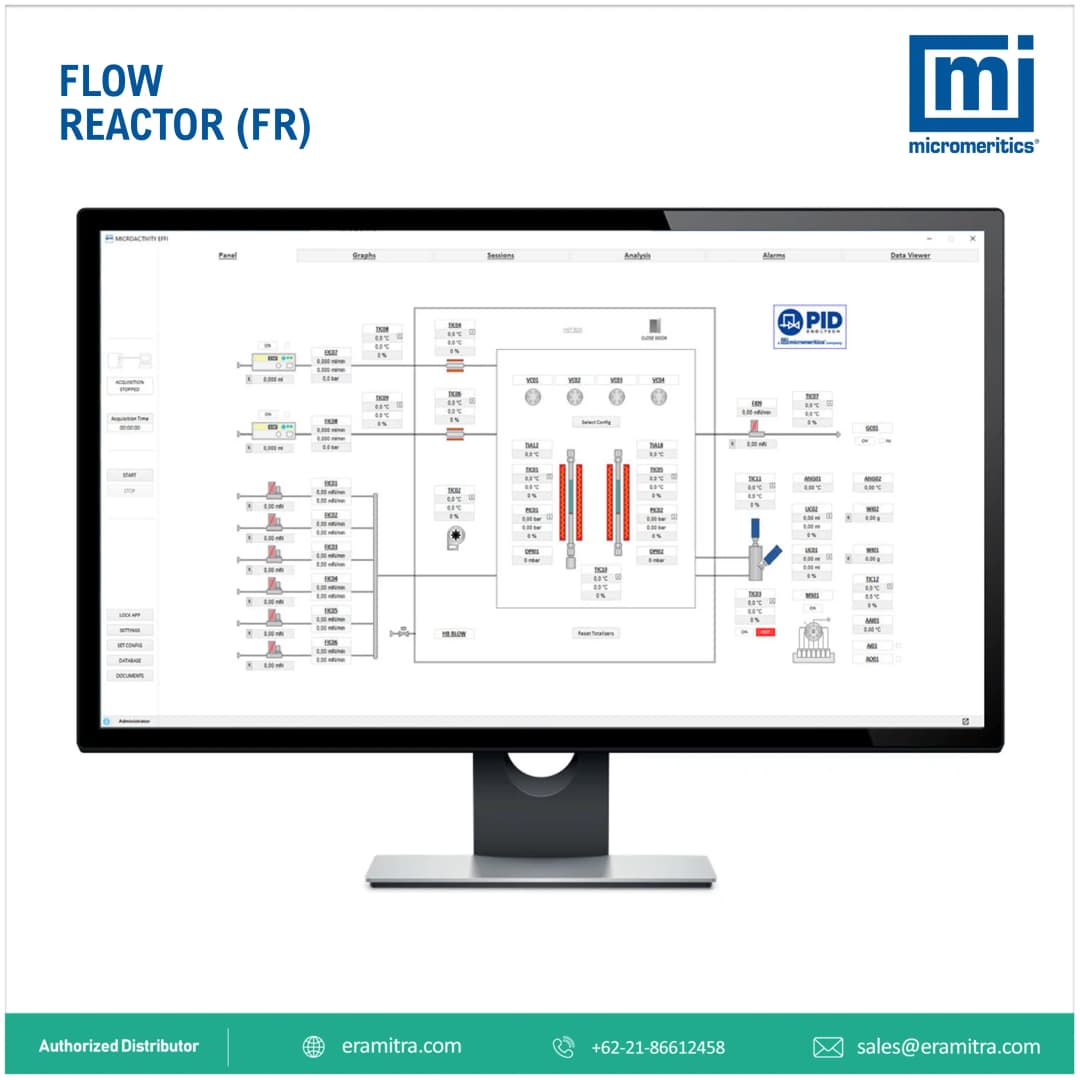

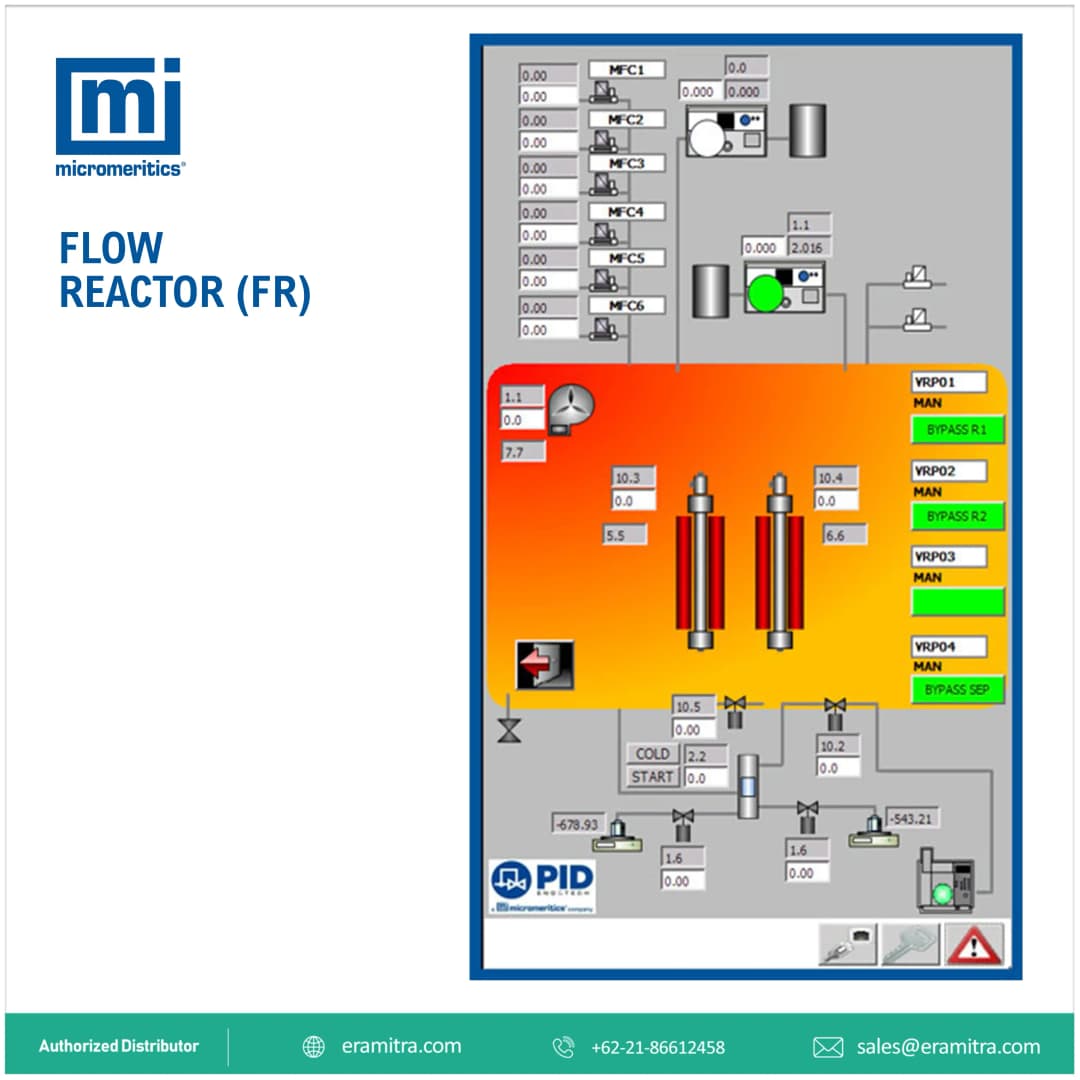

• Automated software for completely unattended operation
• Integrated safety systems featuring alarms, fail-safes, and automated response to undesired conditions

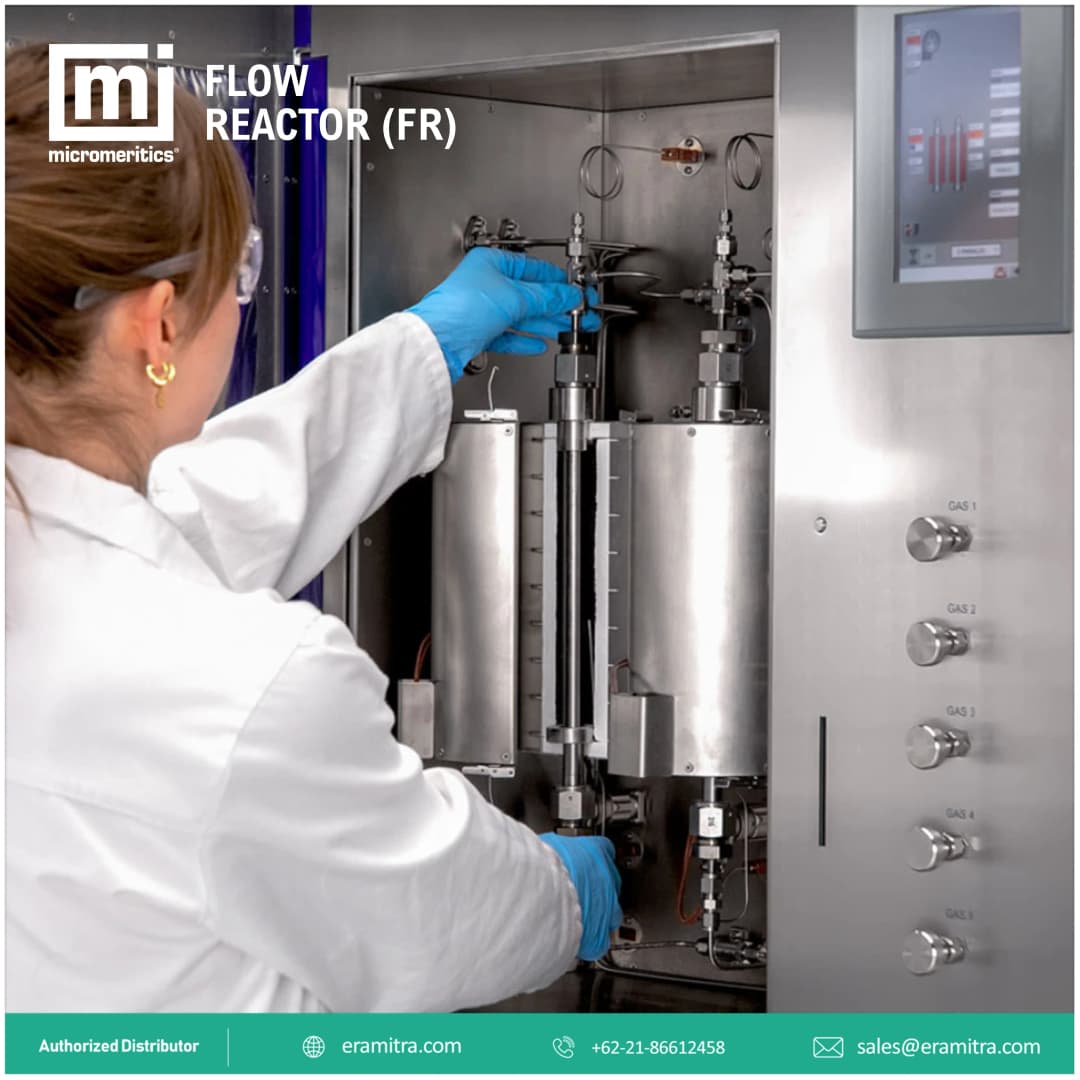

• Benchtop system that allows testing catalyst samples from a few milligrams to several grams

De-risk your scale-up and shorten your development schedule with the FR system that matches your process.
