Higher Precision and Versatility

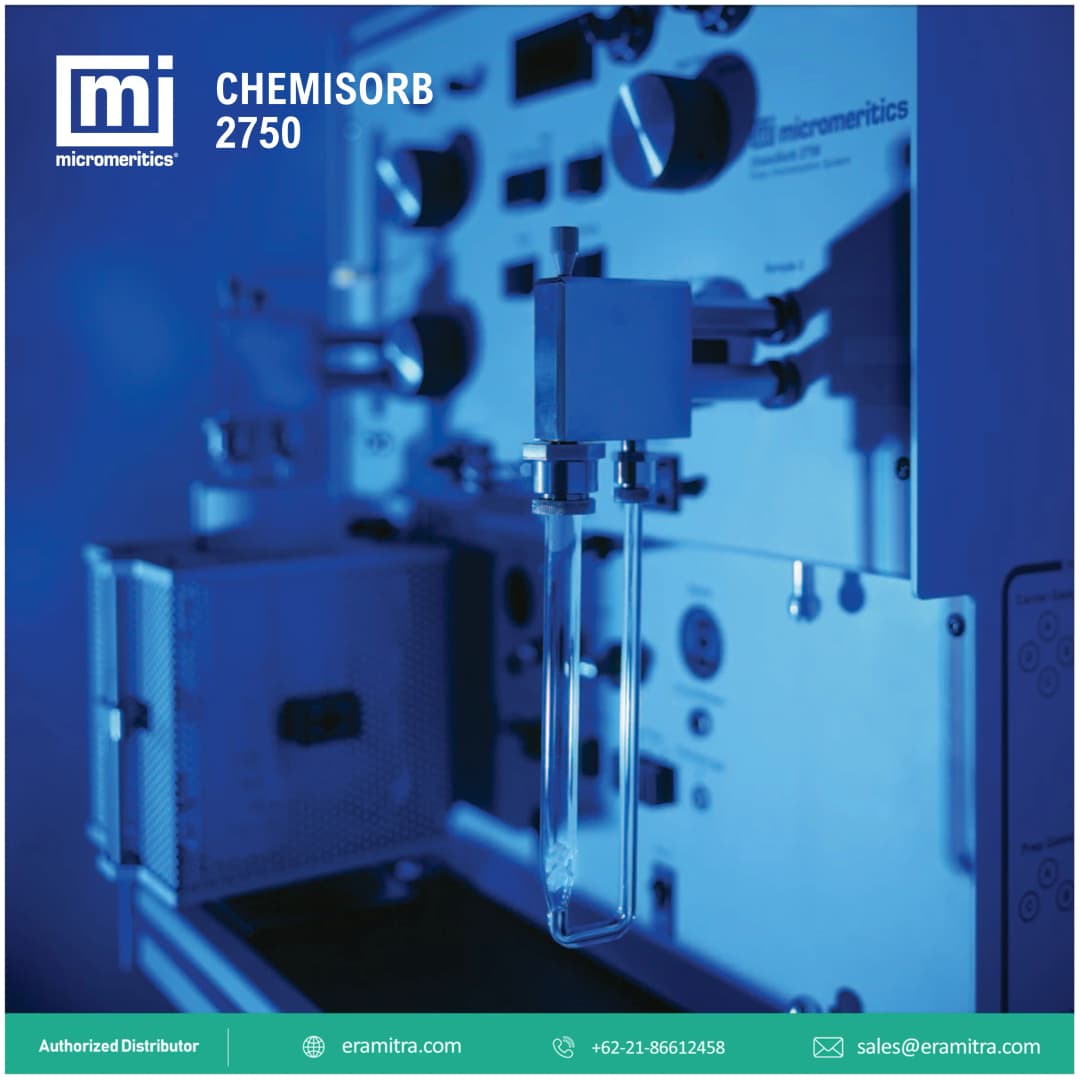

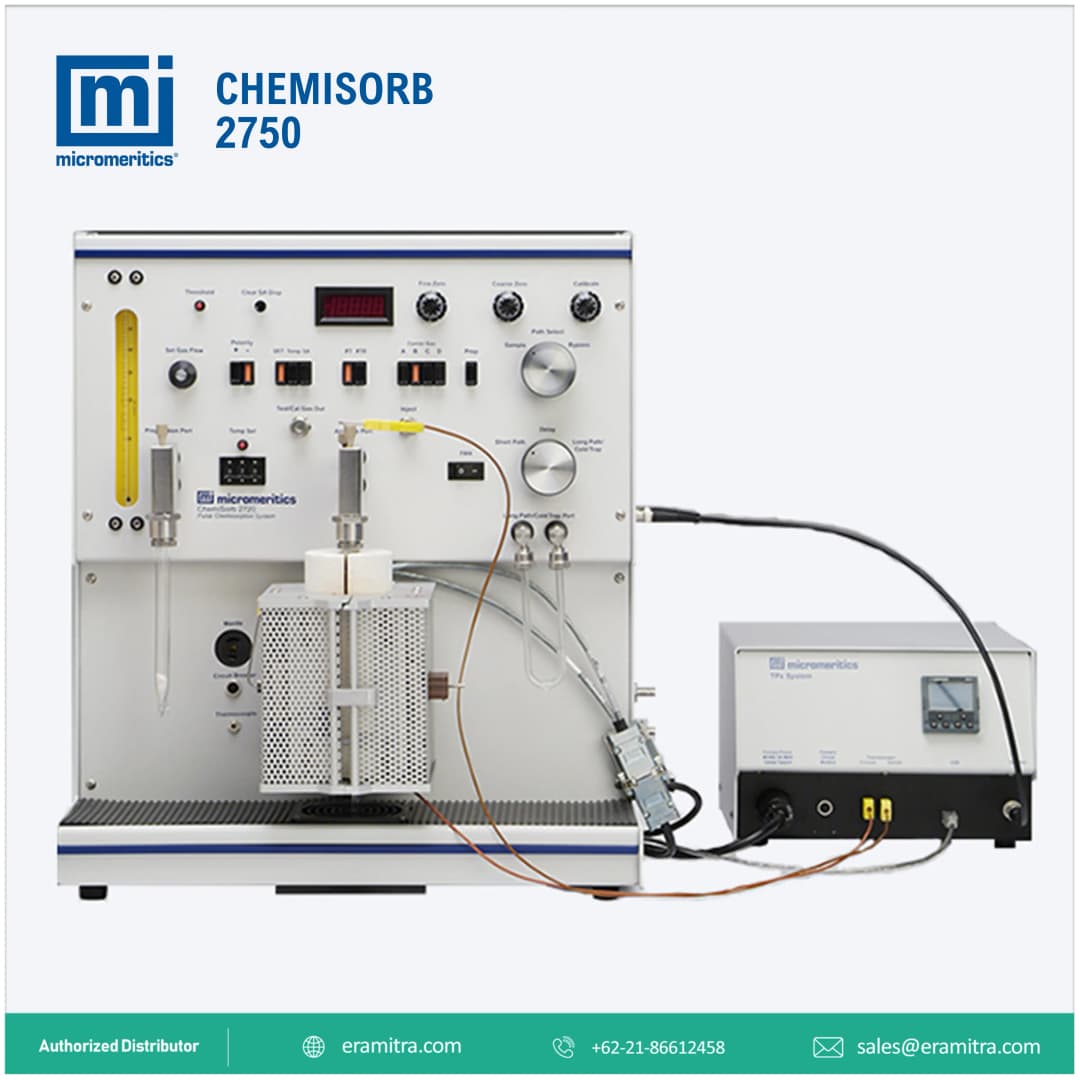

The ChemiSorb 2750 (built upon the same design elements as the Chemisorb 2720) has been further enhanced with the addition of an injection loop for pulsing active gases on the catalyst and features an enhanced dual-port design that allows in-situ preparation and analysis of two samples. Its dual-function sample ports have the capability to be used as either an analysis port or a degas port, eliminating the need to move the sample. This requires less effort and reduces the chances of contaminating an activated sample from exposure to stray gases.

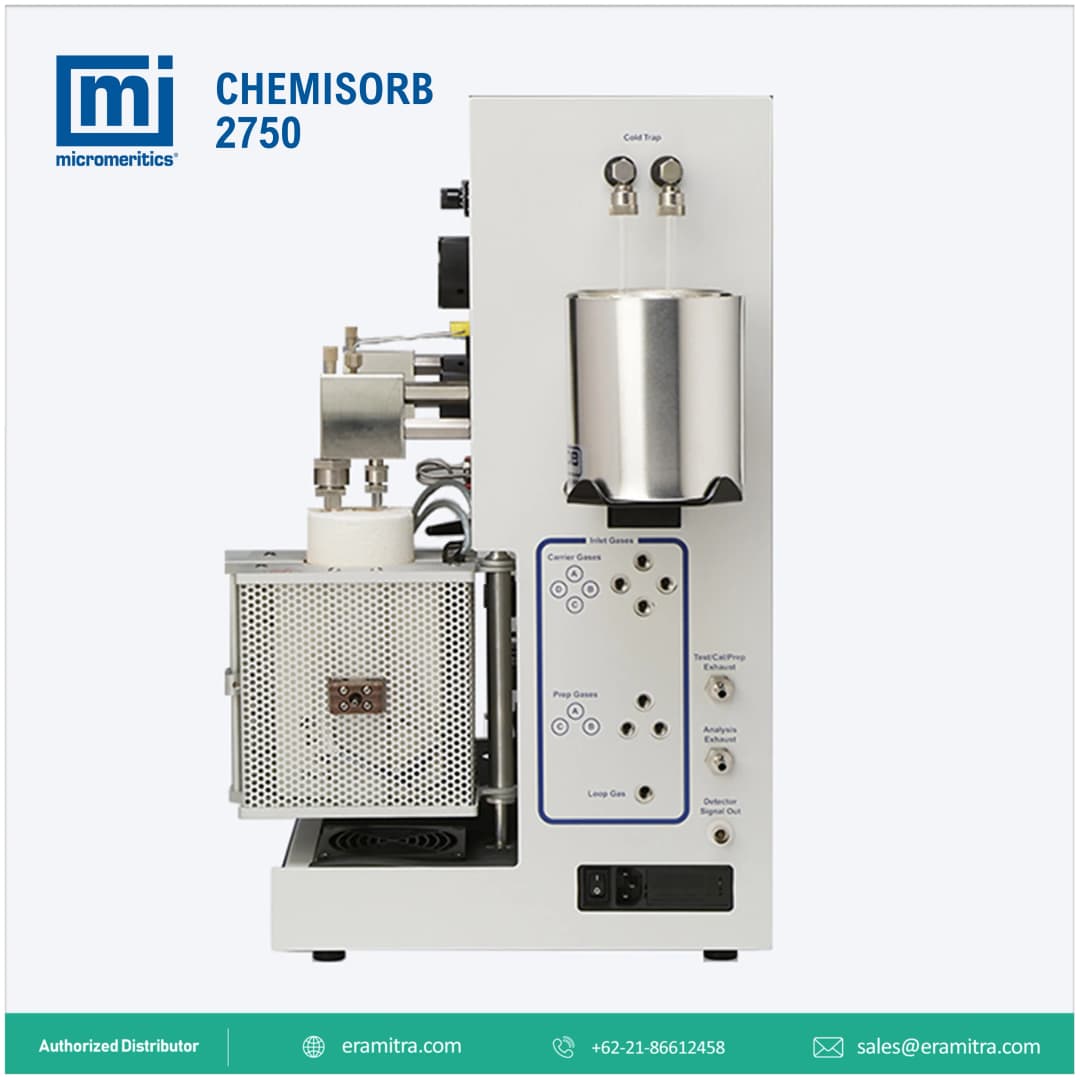

Performing different types of analyses is also easier. In addition to the four carrier gas inlets and three preparation gas inlets, a dedicated gas inlet for the pulse chemisorption gas has been added. Thus, the increased number of ports provides a rapid method for gas change overs without the need to manually disconnect, reconnect, and purge gas lines; this further minimizes the risk of contamination and improves the ease of operation.
Higher precision, repeatability, and reproducibility are provided by the incorporation of an injector loop valve in addition to the injection septum. The loops are easily exchanged to provide different injection volumes. Electrically activated inlet valves allow the use of gases containing H2, CO, O2, N2O, NH3, liquid vapor sources, or other adsorptive. Three built-in prep gas inlets and four carrier gas inlets allow for a variety of experiments without having to disconnect, reconnect, and purge gas lines.
Other functions of ChemiSoft
- Allows control of units, axis scales, and reporting range
- Prints report to screen, printer, or file (text only)
- Cut-and-paste capabilities
- Capture displayed plots as a series of x-y coordinates
- Capture tables from screen as ASCII text files
- Integrates detector signals both automatically and manually
- Displays and prints peak graphs and reports
- Establishes calibration curves for calculation of unknown sample concentrations
- Reprocess stored analysis data using different parameters
- Exports data in ASCII text format for use in other applications
- Allows for off-line data manipulation
- Provides the ability to monitor two instruments from one computer
- Monitors and records furnace temperature
