Leading performance for mesoporous and macroporous materials coupled with class-leading operational safety

• Widest range of measurable pore sizes: from as 3 nm to 1100 µm.
• High resolution analysis for macroporous and mesoporous materials in both intrusion and extrusion anlayses.
• New enhancements focus on improving operator safety.
• Flexible method definition optimizes for speed or resolution as needed.
• Powerful, customizable reporting system produces actionable measurement outputs.
• Complies with the ASTM Methods D4284, D4404, and D6761, as well as ISO 15901-1 and USP <267>.

Class Leading, Proven Performance

The mercury porosimetry analysis technique is based on the intrusion of mercury into a porous structure under stringently controlled pressures. Besides offering speed, accuracy, and a wide measurement range, mercury porosimetry permits you to calculate numerous sample properties such as pore size distributions, total pore volume, total pore surface area, median pore diameter and sample densities (bulk and skeletal).

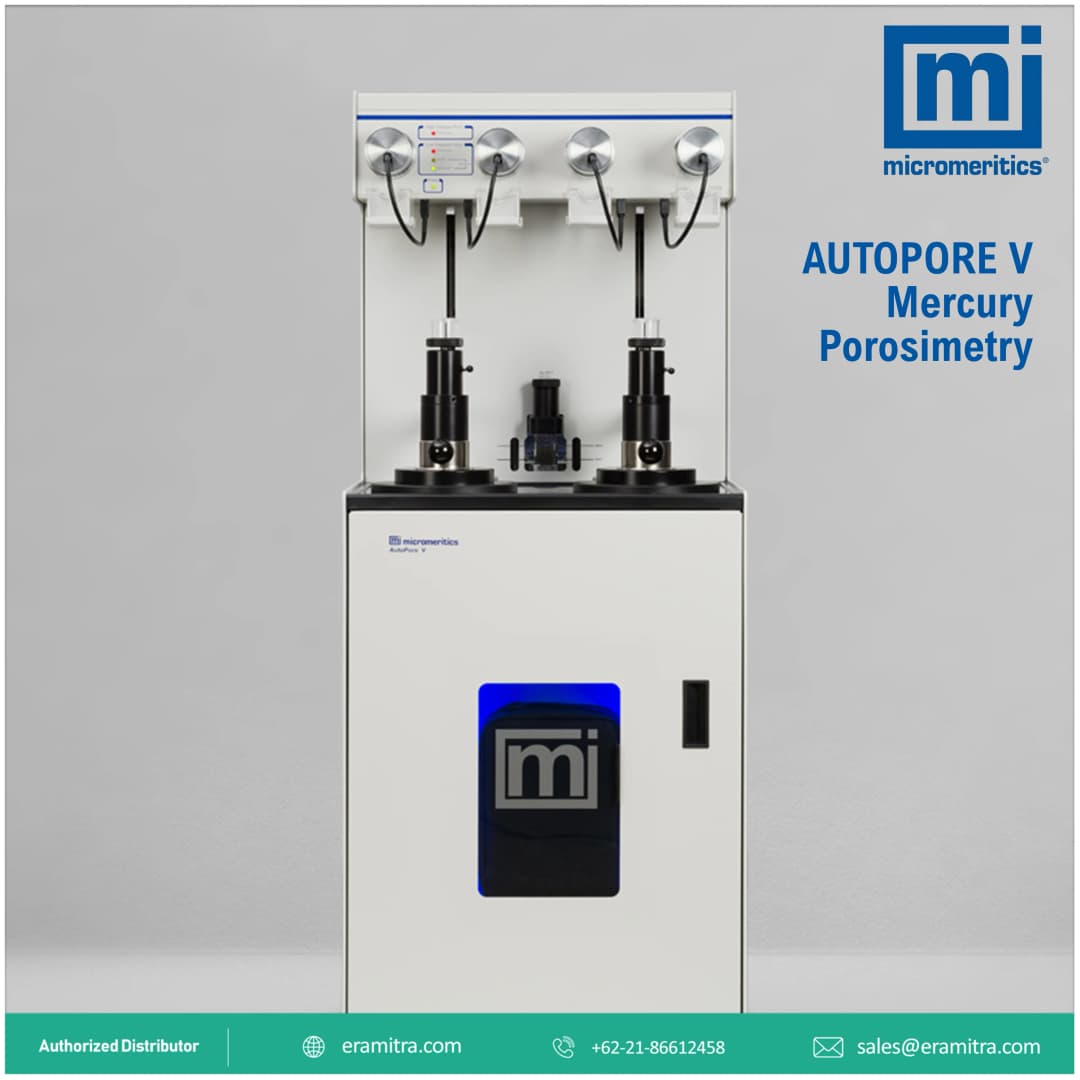

The AutoPore V Series Mercury Porosimeters can determine a broader pore size distribution more quickly and accurately than other methods. This instrument also features enhanced safety features and offers new data reduction and reporting choices that provide more information about pore geometry and the fluid transport characteristics of your material.

Features and Benefits

• Provides rapid, detailed intrusion and extrusion analysis over a wide range of pore sizes.
• Nineteen standard penetrometer sizes and configurations allow analysis of a wide variety of sample sizes and shapes.
• New safety enhances set a new benchmark in operator safety.
• Scanning and equilibration modes of operation allow for rapid or more detailed analyses, respectively.
• MicroActive software allows for rapid modification of reporting ranges.
• Includes user-defined advanced reporting capabilities using Python scripts
