8301 Series

Zero Air Generator

The Acoem 8301 Series Zero Air Generators have been designed to supply zero air (contaminant free) to a dilution calibration system, such as the Serinus Cal 1000, Serinus Cal 2000, Serinus Cal 3000. The system comprises a compressed air source, permeation dryer and a series of optional scrubbers chosen depending on the application, producing clean, dry dilution quality “zero air”. The LC versions include an external Logic Control connection to activate the air source when air is required by the calibrator. This prolongs the life of the scrubbers and pump.

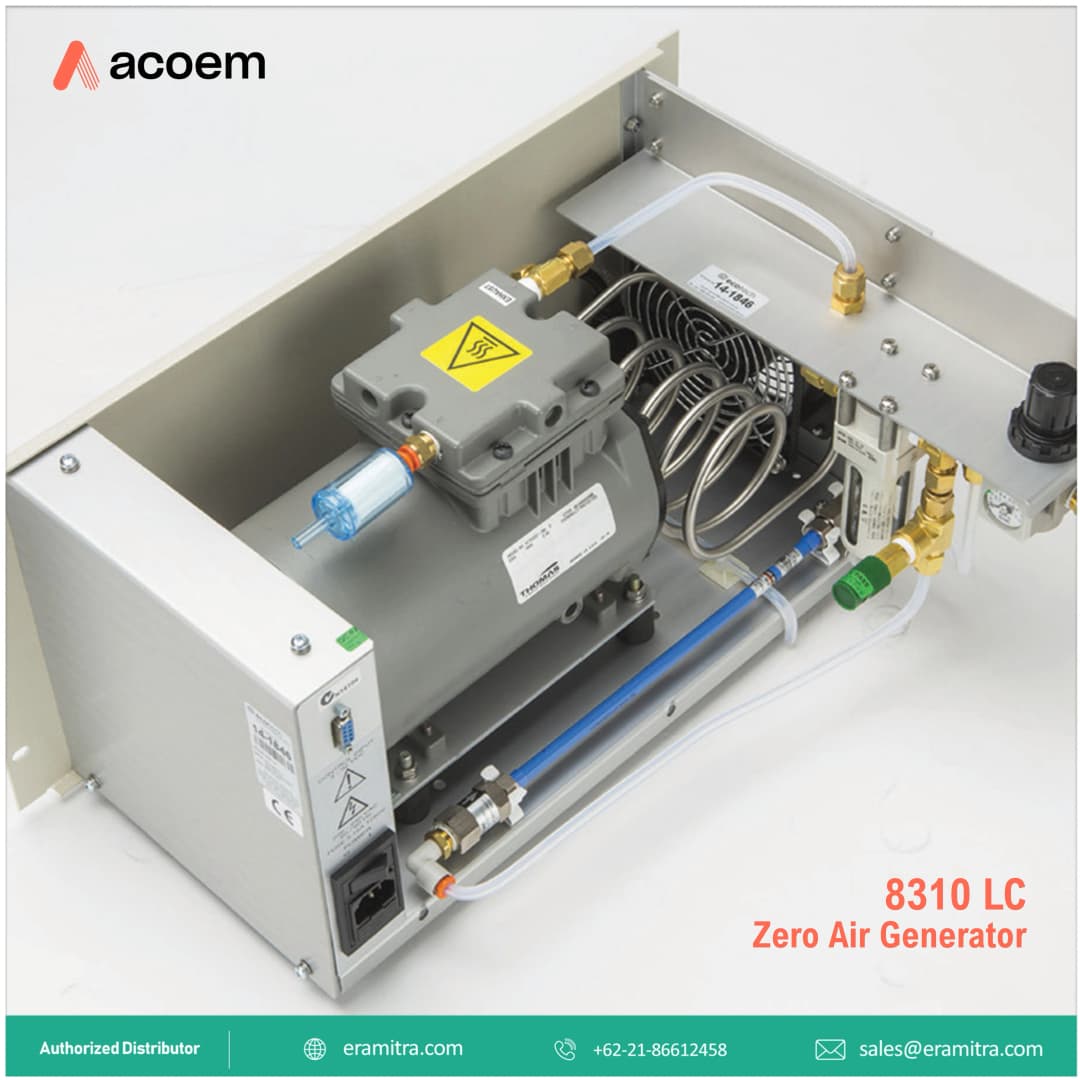

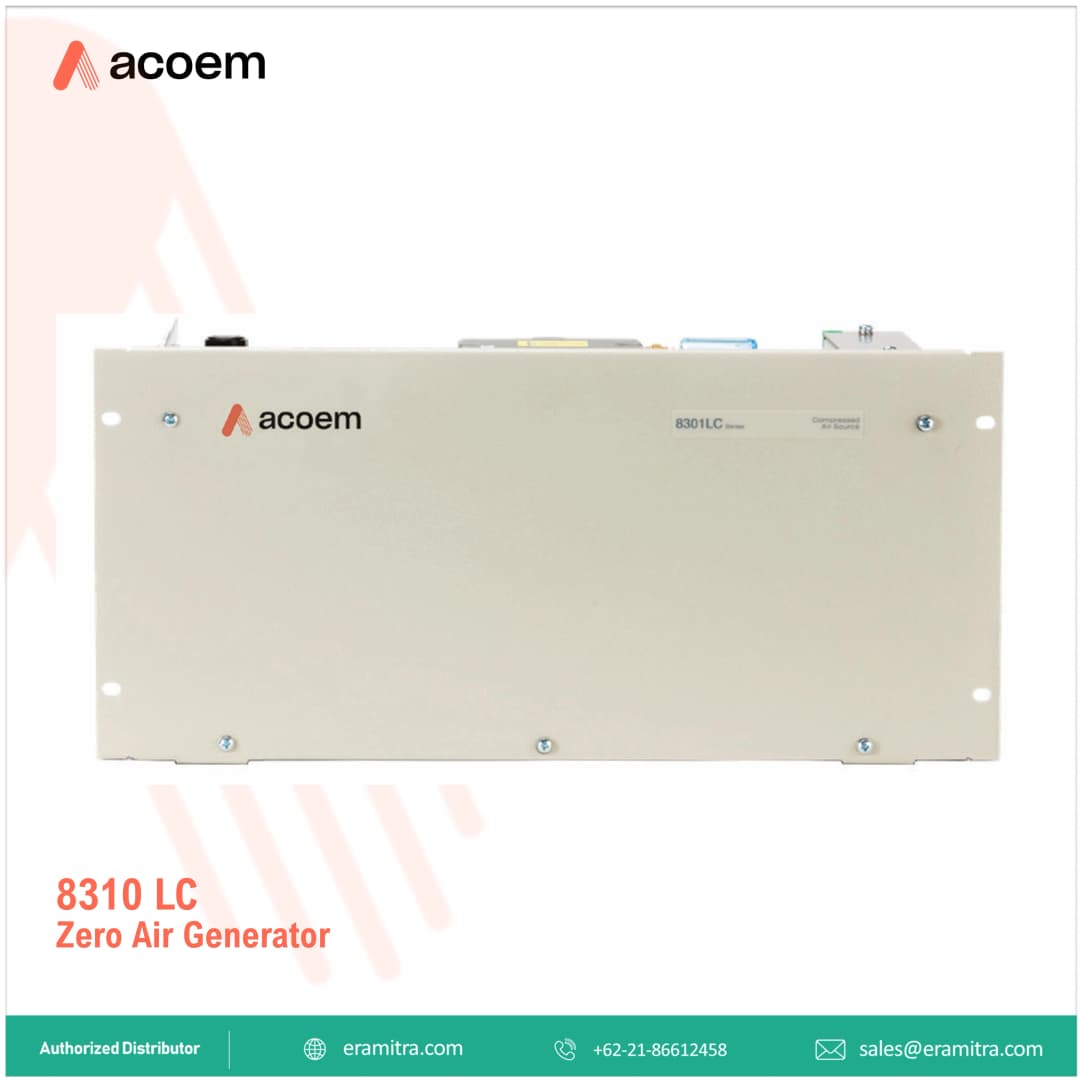

• Model 8301 LC - Either a 19" rack-mounted enclosure or a portable version, Provides in excess of 10 lpm of zero air.
• Model 8301 LC-H - A high capacity variant providing in excess of 20 lpm.

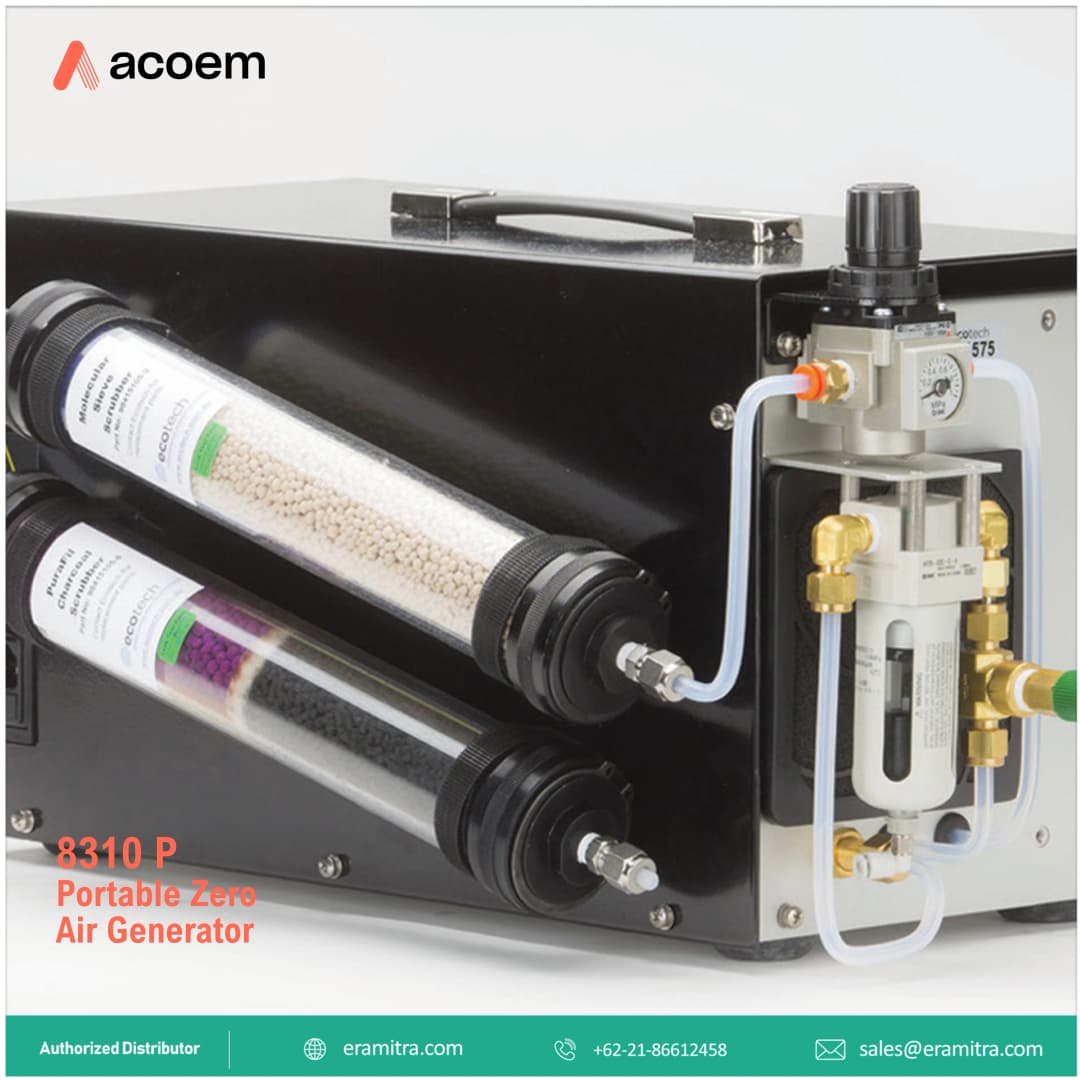

• Model 8301 P - Provides in excess of 9 lpm of zero air at a pressure of 200 KPa — ideal for use with dilution gas calibrators.
• Model 8301-H - A high capacity constant air source, Includes a low dew point dryer to provide -40 °C dew point air at 10 lpm.
